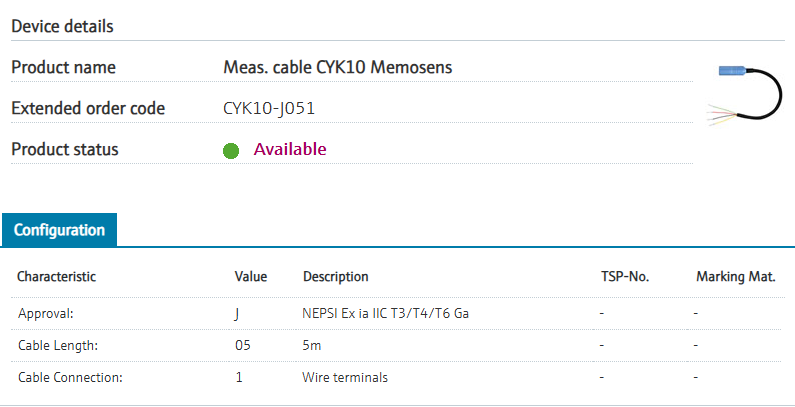

CYK10-J051

説明

測定範囲

High impedance cable not necessary

Design

Easy to handle Bajonett coupling to connect digital sensors with Memosens technology and plug-head
No open contacts, resistant against humidity

Material

Cable sheath: TPE
Junction box: aluminum

Dimension

Diameter: 6.3 mm (0.25 inch)
Cores: 2×2 cores, twisted pairs
Length: up to approx. 100 m (328 ft)

プロセス温度

-25 to 135 °C (-13 to 277 °F)

プロセス圧力

max. 50 bar/725 psi at 135°C/275°F.

Temperature sensor

For digital sensors with inductive plug-head with and without temperature sensor

Ex certification

ATEX II 1G Ex ia IIC T3/T4/T6
FM, CSA IS Cl.1 Div 1 Gr. A-D
ATEX, NEPSI II 3G Ex ic IIC

イングレス・プロテクション

IP68
